Data model for subscription management system with a NoSQL database like MongoDB.

Subscription Tracking Data Model for noSQL

This sample model is a good starting point for creating a subscription management system with a NoSQL database like MongoDB.

The idea is to store info about purchased software licenses, subscription payments, licensees assigned to users, and tracking history.

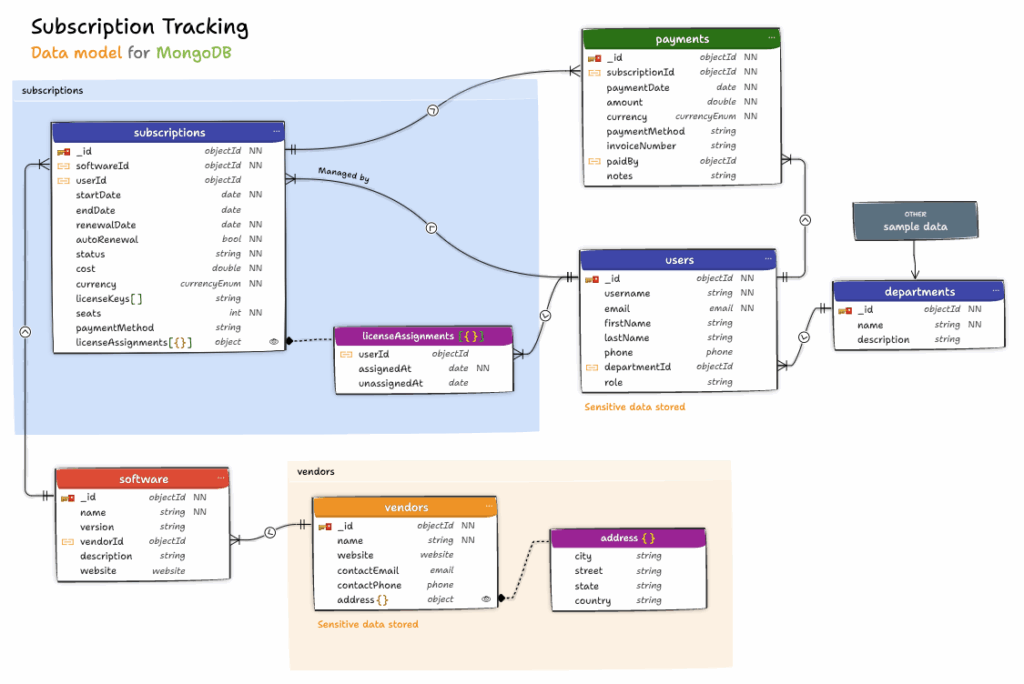

Data Model and ER Diagram for subscription management system with a NoSQL database like MongoDB.

HTML report / online ER Diagram

Open ER diagram in new tab

Details

Target database: MongoDB

Diagram URL:
https://www.dbdiagrams.com/online-diagrams/subscription-tracking-nosql/

Moon Modeler project file:
https://www.dbdiagrams.com/online-diagrams/subscriptions-nosql.dmm
